Standard Abrasives™ 051115-42306 MPN24809

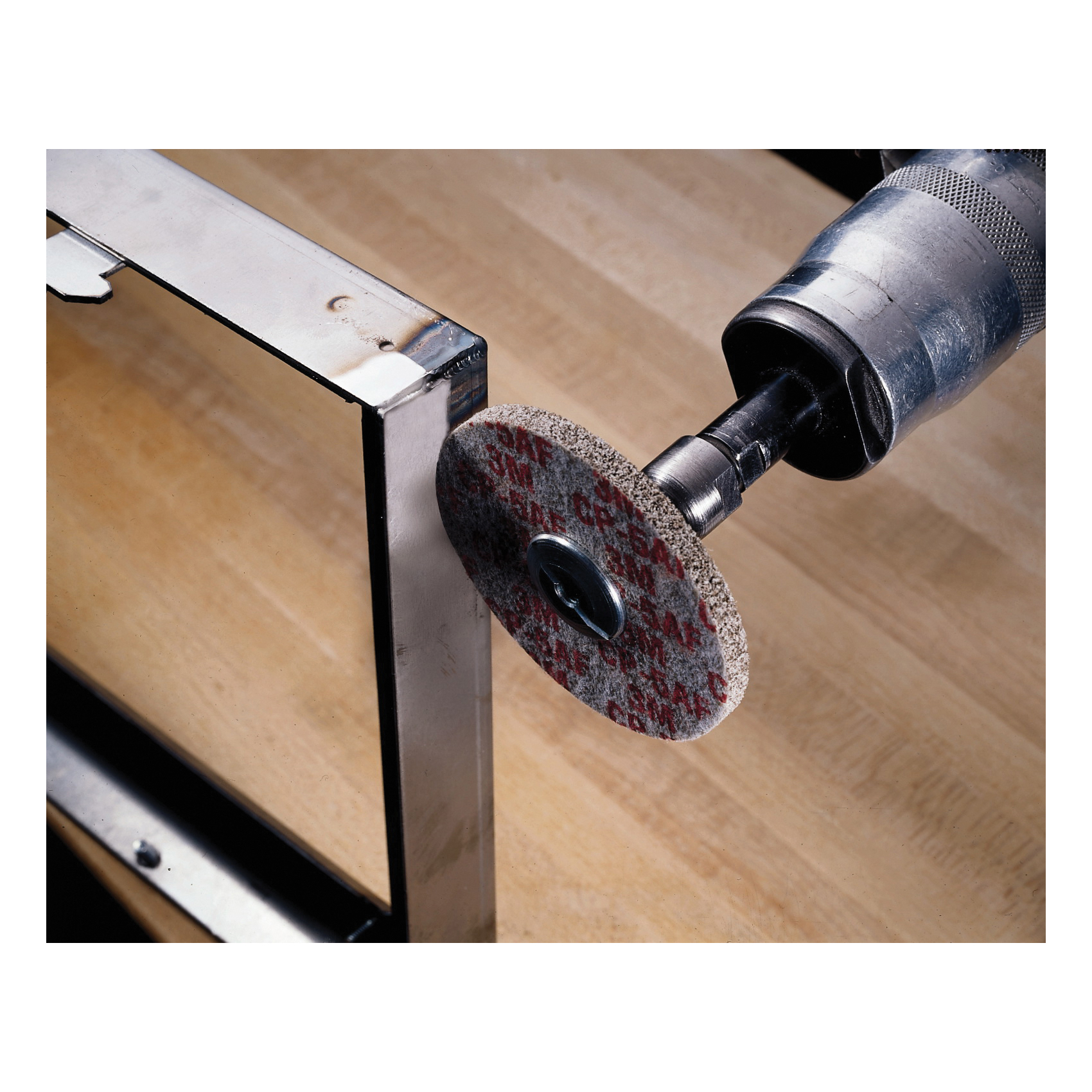

Wheels in our Standard Abrasives™ Silicon Carbide Unitized Wheel 500 series have a soft, conformable density, making them a good match for light-pressure blending, finishing and polishing on flat or contoured parts. When strict tolerances are required, these non-woven wheels offer operators the finesse needed to deliver precise results. Among Standard Abrasives™ unitized wheels, the 500 series provides the softest density and is available in medium (MED) and fine (FIN) grade silicon carbide (S/C). The combination of soft density and sharp-cutting S/C mineral makes these wheels a good match for applications where a fine finish is more important than cut, such as polishing fillet areas on jet blades and soft metals prior to the coating process. Due to their conformability, these wheels are great for projects with strict tolerances, because they respond to surface irregularities. After prolonged use, the wheel may be dressed to maintain its shape. Our 500 series S/C wheels come in two options. Type 532 is an excellent choice for finishing applications. We designed the Type 524 wheel to better suit light-weight blending applications by constructing it with a higher density of MED grade S/C grain throughout the web material, resulting in a slightly more aggressive product. Unitized wheels are typically used on a right angle grinder. A benefit of unitized wheels is that they are bi-directional and can be mounted on a tool or pedestal grinder without regard to the direction of the spindle rotation. This means the Standard Abrasives™ unitized wheel can be used with a variety of tools, and regardless of which way the workpiece is fed through the machine, the wheel will be able to respond, giving operators more flexibility. The stiffness of the unitized construction enables operators to use thinner wheels to access awkward angles with grinding tools. Series 500 wheels comes in a range of diameters from 1 to 12 in and require a unitized wheel mandrel for attachment to the tool. Quick change wheels are also available.

Standard Abrasives™ Unitized Wheel, Series: 524, 8 in Dia, 1 in Thickness, 5/8 in, Medium Grade, Silicon Carbide Abrasive, 5 Soft, Applicable Materials: Ferrous, Non-Ferrous Metal, Exotic Metal, Titanium and Composites

• Soft density silicon carbide wheel blends surfaces to a fine finish
• Soft density offers exceptional conformability which is especially important for applications with close tolerances
• Cuts faster than standard Abrasives™ buff and blend non-woven products, though with less flexibility
• Runs clockwise and counterclockwise, allowing greater flexibility and versatility when paired with tools and machines
• Open-web is load resistant, contributing to longer abrasive service life
• Center hole wheel comes in a range of diameters from 1 to 12 in and attaches to tool with a unitized wheel mandrel

• Video Link https://www.youtube.com/watch?v=8qk4gf3wt9w
• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/Standard_Abrasives_051115_35434_Catalog.pdf
