Cushion-Mount™ Plus 051128-99300 MPN67274

Our 3M™ Cushion-Mount™ Plus plate mounting tape L1520 with easy mount adhesive is designed for mounting flexographic print plates to cylinders or sleeves. This purple foam plate mounting tape provides high quality medium combination print. 3M™ Cushion-Mount™ Plus plate mounting tape L1520 is a purple foam tape that provides high quality medium, combination print. This is the medium density tape for combination print. It has the air release feature that allows for bubble free mounting. Notably, this flexographic plate mounting tape has excellent resistance to lifting on press and is tolerant to ink contaminates, allowing for easy and clean plate removal. Mounting photopolymer plates to flexographic printing cylinders and sleeves. Used in combination, process and solid printing processes. 3M™ flexographic plate mounting tapes are highly engineered to provide very tight caliper tolerance to allow printers to use tape from different manufacturing lots and keep tight print registration. The compressible foam will withstand long and high speed print runs. This cushion tape is manufactured for 20 mil applications. It is constructed with engineered acrylic adhesives. The adhesive on the linered (plate) side of the tape is designed for mounting photopolymer plates. Easy plate removal from tape may result in less worker fatigue and plate damage. The adhesive on the non-linered (sleeve/cylinder) side is designed for mounting to flexographic printing cylinders or sleeves, providing easy application at mounting and clean removal when demounting. 3M™ air release liners have a crosshatched pattern, unlike other mounting tapes that use a pebbled or flat release liner. The embossed crosshatched pattern imprints unique micro-channels into the easy mount adhesive that allows entrapped air to escape. Air bubbles disappear from between the tape and plate and between the tape and sleeve or cylinder for virtually bubble-free mounting. Setup is faster with smoother surfaces for cleaner print quality and higher productivity. The adhesive maintains tight contact with reduced edge lifting. For decades, 3M™ products have been at work in printing plants helping to improve the quality of the work that goes out and the efficiency of how it gets done.

Cushion-Mount™ Plus Plate Mounting Tape, 25 yd Length, 27 in Width, 22 mil Thickness, 4.5 mil Polycoated Polyester Liner, Purple, 2 mil Differential Acrylate Adhesive, Polyethylene Foam Backing, 55 to 70 in-oz Non-Linered/15 in-oz Linered Adhesion Strength, 120 deg F

• This 0.02 in (0.51 mm) double coated foam tape has the air release feature with a plate side adhesive technology designed to remove with less force in the presence of ink contaminates on flexographic print plates
• Provides high quality medium combination print
• The adhesives remove cleanly from the print plate and the print cylinder
• Flexographic printing, flexographic printers
• Cushioned flexographic plate mounting sticky back tape
• Has a medium density foam that is ideal for printing combinations of solids and process with halftone dots
• Purple foam color indicates medium density foam
• Securely bonds the flexographic photopolymer plate to the print sleeve or steel cylinder to prevent plate edge lifting during printing
• Print plates mounted on L1520 will have no air bubbles under the plate due to the air release feature designed into the tape

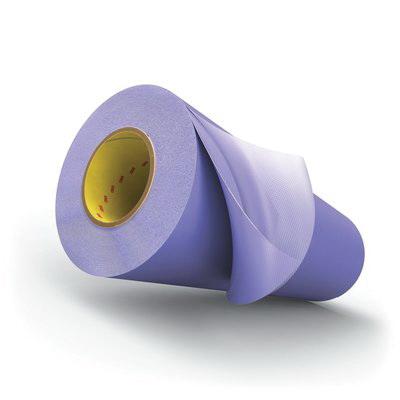

• Grooves in the adhesive are created by a cross-hatch pattern from the release liner
• Plate easily demounts from the double coated cushioned tape without adhesive residue
• Tape also removes cleanly from the sleeve or steel print cylinder

• Specification Sheet https://assets.unilogcorp.com/2/ITEM/DOC/Cushion_Mount_Plus_051115_81089_Datasheet.pdf
