3M-Matic™ 051111-07236 MPN70787

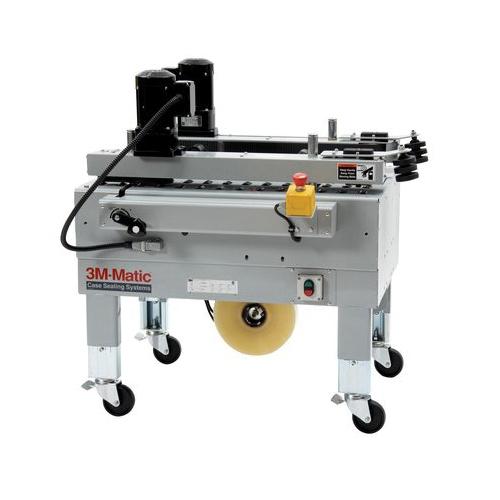

3M-Matic™ case sealer 800ab with 3M™ AccuGlide™ 3-taping head is a manually adjustable unit that automatically seals the bottom center seam on a wide range of case widths. The twin gear motor drives power traction-grip drive belts on each side to center and stabilize cases up to 85 lb (38 kg). This case sealer uses 1-1/2 to 2 in (36 to 48 mm) Scotch® box sealing tapes and seals up to 40 CS/min. Our 3M-Matic™ case sealer 800ab with 3M™ AccuGlide™ 3-taping head seals the bottom center seam and manually adjusts to a wide range of case widths. It features a rugged 16 ga welded steel frame and epoxy paint finish, with traction-grip belts to center and stabilize boxes for consistently accurate taping. 3M™AccuGlide™ 3 taping heads offer low impact sealing to protect cases. This box sealer uses 1-1/2 to 2 in (36 to 48 mm) tape to seal up to 40 uniform boxes per minute - case lengths of 6 in (150 mm) or more, widths of 4-1/2 to 21-1/2 in (114 to 545 mm) and heights of 4-3/4 in (120 mm) or more (max height depends on box stability through the sealer). The twin gear motor drives allow for high volume and heavy duty sealing applications, managing regular slotted containers (RSC) weighing up to 85 lb (38 kg). Designed to apply a "C" clip of Scotch® box sealing tape, the 3M™ AccuGlide™ 3-taping head seals the bottom center seam. With a flowing, curvilinear form for low impact and consistent application, 3M™ AccuGlide™ taping heads help protect boxes while providing greater case throughput. A regular slotted container (RSC) is placed on the conveyor and pushed into the drive belts, which convey the box into the taping head. The 3M™ AccuGlide™ 3-taping head applies Scotch® pressure sensitive film box sealing tape at the leading end of the box, continuing along the center seam to the trailing end. This is called a "C" clip application. The taping head cuts the tape as it is being applied. After the box is securely sealed, it exits the case sealer.

3M-Matic™ Case Sealer Machine, Manually Adjustable Semi-Automatic, Side Belt Location, 78 fpm Belt Speed, 2 in Tape Width, 6 in L x 4-1/4 in W x 4-3/4 in H Minimum Box, 21-1/2 in W Maximum Box, 315 W Power, 115 VAC, 3.8 A

• Spring-loaded side drives to center cases
• Inclined rollers at in-feed help keep case down on conveyor bed

• Catalog https://assets.unilogcorp.com/2/ITEM/DOC/3M_Matic_051111_18616_Catalog.pdf
